  R2033 COMMANDER
CONTROL PROGRAMME WITH PERSONAL COMPUTER
FOR R33 PLUS AND R2000

WORKING PLAN:

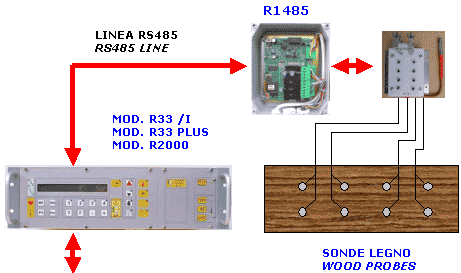

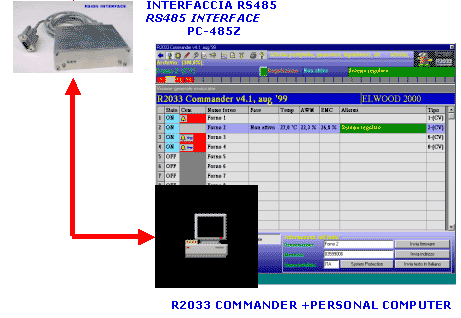

The measuring and control system with PC is normally used when there are several dryers and they are to be managed easily from a single company office or control room. The offices do not necessarily need to be physically near the dryers since the data is transmitted using a cable via RS 485 communication interface.

Schermata del programma R2033 Commander

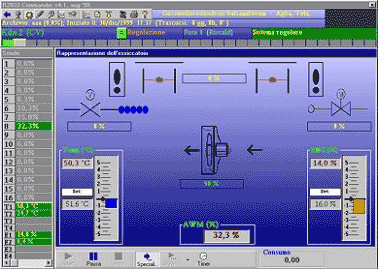

R2033 Commander interface


Basically one disposes of the same management possibilities as those offered by the unit while using one's own keyboard. There is also the possiblity of recording the drying process data in a specific file of the PC. The data can then be processed and analyzed using different graphical layouts.
Usually, the opportunity offered of showing the programme in several screen layouts makes everything very easy and pleasant.
1st window - Main supervisio window
2nd window - Kiln drier window
3rd window - Drying programs window
4th window - Regulatio probe window
5th window - Graphic window

Scheda di interfaccia PC-485Z

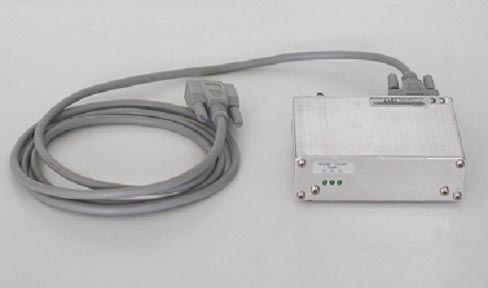

PC-485Z INTERFACE CARD

There are some other control possibilities, such as printing of historycal archive and on-line help (user's guide for the programme).
The tester can also carry out a simple relay output and fan speed test.
The system operates with Windows 95/98.

Schermata del programma R2033 Commander
R2033 Commander interface
It is possible to connect thirty-two (32) dryers (even dryers having different characteristics - condensation or conventional). The control can be shifted from the unit to the PC or vice-versa at any time thus allowing the operator to modify the setup parameters from the place which is most convenient for him.
A file is automatically created at the start of each drying process for storing drying process data. Data stored can be reviewed in the future.
The PC's hard disk enables the twenty-four (24) wood drying programmes which are already present in each R33-I and R33 PLUS unit to be increased. It is thus possible to create more additional programmes which can be copied easily using a floppy disk.
