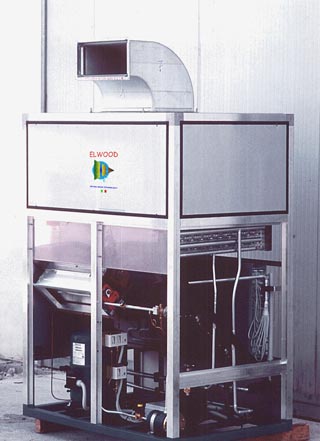

DRYING UNITS MOD. ECO

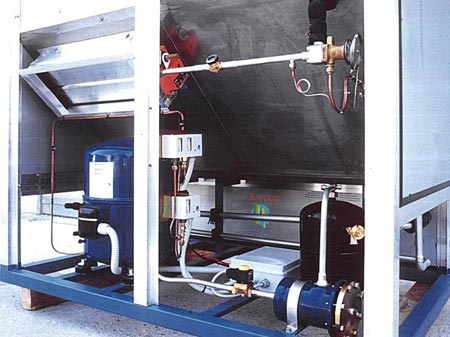

TECHNICAL CONSTRUCTION CHARACTERISTICS:

Macchine frame with aluminium "anticouodal" structure;
Aluminium sandwhich-type isolation panels;
Aluminium air pipes with intemal isolation;
Extra thick copper-aluminium evaporator with couosion-proof epoxy vamish;
Galvanized sheet fan protected with couosion-proof epoxy vamish.

Spray rod
Electrical control panel is separated from the machine in conformity with the CE norms in force and it includes:
-1 Hygrometer
-1 thermostat

DRYING UNITS
Mod ECO HT

Upon request:

-microprocessor controller mode CET R33 I I CET R33IE PLUS
-4 wood probes		8 wood probes
-1 EMC probe		2 EMC probes
-24 drying programmes for completely automatic cycles

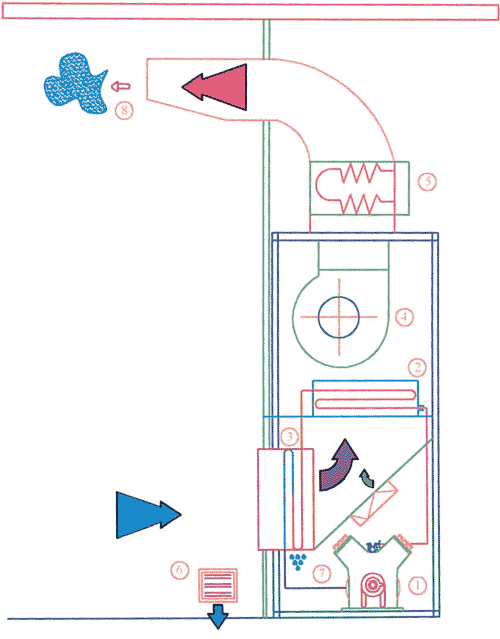

Schema di funzionamento di essicatoio a condensazione

DRYING UNITS Mod ECO working plane

Legend:
	1 - Compressor	5 - Auxiliary Heating
	2 - Condenser	6 - Dumper
	3 - Evaporator	7 - Water Outlet
	4 - Main Fun	8 - Humidifer

Test to be done in our factory
Seal test and final inspection of the refrigerant circuit under pressure Filling of dryer with R134a refrigerant.
Final testing of dryer connected to the controls panel.

Packing and transport costs for the delivery of the machines are to be paid for by the purchaser.

The final inspection at the purchaser's premises is not envisaged unless otherwise agreed upon. In any case, I can train your personnel so that the machines can be operated by the purchaser's technicians. Should any problem arise I am always available to help you.

Warrany
The machine warranty comprises the replacement of faulty or damaged parts of the machine, ex-works our factory. The wauanty does not cover any type of intervention by our technicians to replace or repair the parts under warranty. Our technicians are at your disposal for any type of intervention which is requested. The terms and cost shall be determined on a case-by-case basis and invoiced separately.

Condensation dryers

Model	Nominal compressor power		Main fan		Supplementary fan		Electric heating	Drying capacity
	Nominal compressor power		Power	Main fan capacity	Power	Main fan capacity	Electric heating	Resinous wood	Hard wood
	Kw	Hp	Kw	mc/h	Kw	mc/h	Kw	mc	mc
ECO 15 HT	3,7	5	2,2	7000	1,5 x 2	10.000	6	10	15

ECO 30 HT	7,4	10	3	10.000	1,5 x 2	12.000	9	20	30

ECO 50 HT	11	15	4	14.000	2,2 x 2	18.000	13,5	35	50

ECO 75 HT	18	25	5	20.000	1,5 x 2	18.000	18	50	75

ECO 100 HT	25	35	7,5	28.000	3 x 2	24.000	27	75	100

ECO 150 HT	37	50	11	42.000	3 x 4	48.000	41	100	150
