  WARM AIR GENERATOR " HOT G. " SERIES

This is yet another practical and simple solution for a wood dryer. It is connected to a kiln and it can check the climate, the heat, the ventilation and the air change.

It can be used on two different types of dryers:
Dryers with reversible fans positioned on a beam and dryers with the wall fan system. In the latter case, the air of the generator integrates the one of the auxiliary fans.
When it is connected to a good electronic control-unit it ensures a drying process which is just as effective as the one obtained with conventional dryers.

The aluminum structure and stainless steel panels eliminate corrosion and the fans are coated with a special protective vamish.
  Macchina serie HOT G
WARM AIR GENERATOR
" HOT G. " SERIES

Thermic power
Capacity
Main fan
Pressure
Models
Max
min
kw
Mc/h
Pa
171 90 195 10.500 140 TL 140
206 118 220 14.000 210 TL 190
275 147 300 20.000 150 TL 250
336 175 380 28.000 150 TL 320

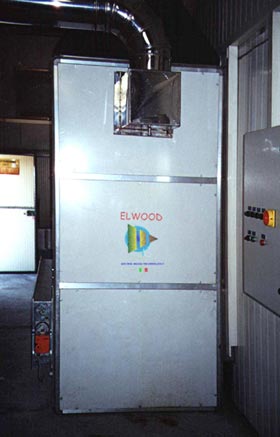

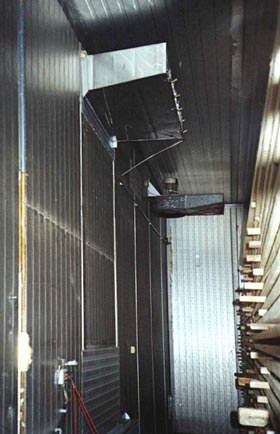

Realizzazione con macchina serie: HOT G.   Realizzazione con macchina serie: HOT G.
WARM AIR GENERATOR " HOT G. " SERIES
